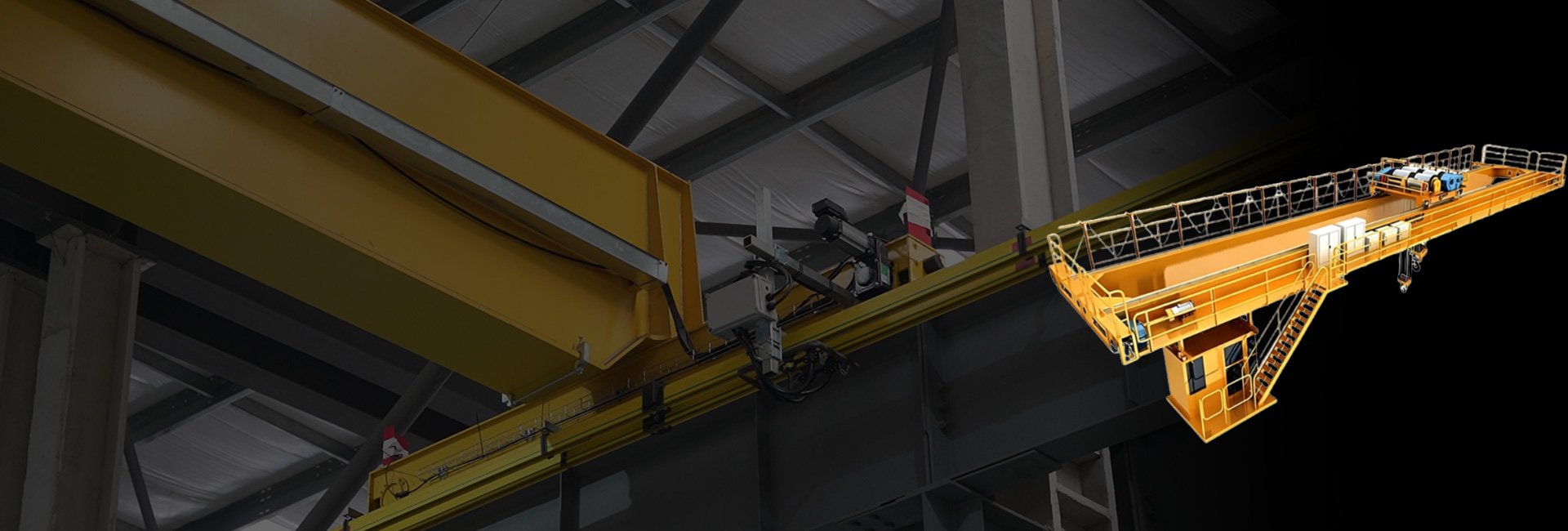

What is a 50 Ton Bridge Crane?
The 50-ton bridge crane is a lifting equipment that can help you lift, transfer and stack 50-ton heavy materials. It is widely used in different fields such as steel, automotive, machinery manufacturing and warehouse, effectively solving low handling efficiency and prominent safety hazards in industrial production. It can accurately complete different handling tasks and greatly reduce your labor costs for on-site operations.
As a professional 50-ton bridge crane supplier, DINGYA meets RoHS, CE, and ISO9001 international standards to ensure the high quality of each product. We not only provide standard models that meet the general needs of the market, but also provide customized solutions according to your on-site layout and production.
In addition, DINGYA also offers one-stop services such as installation guide, technical training and after-sales support to solve all your use problems promptly.
Contact us now to get more details.
Our Products

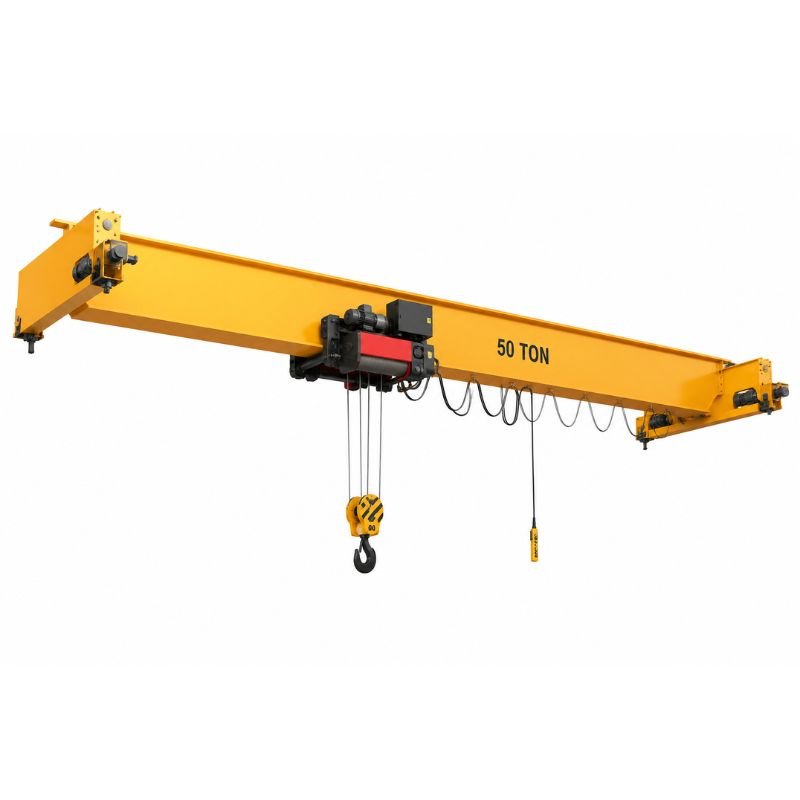

It is light and cost-effective. Suitable for light-duty handling operations in workshops with limited space.

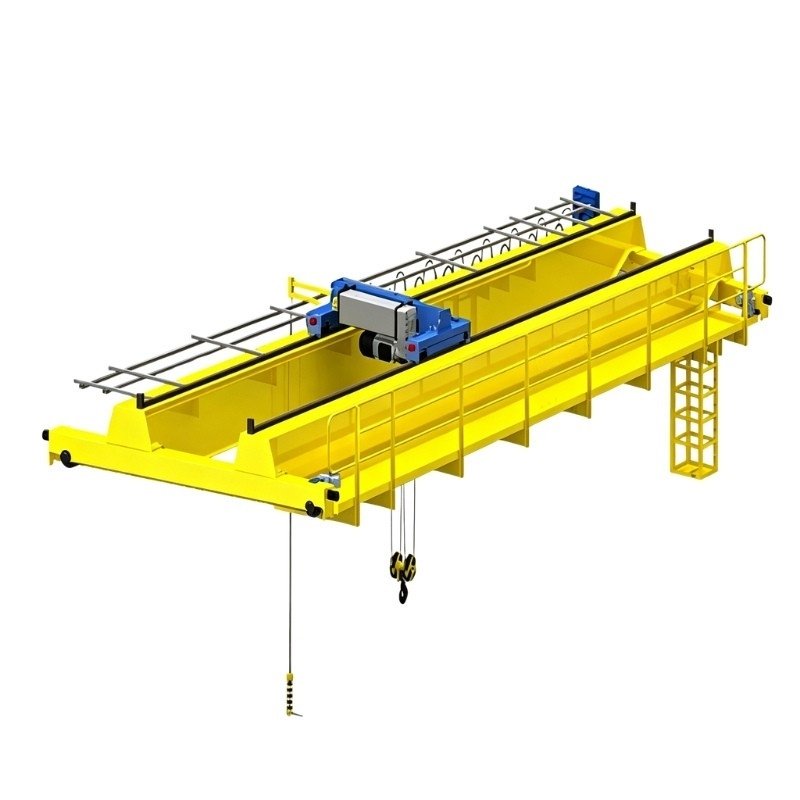

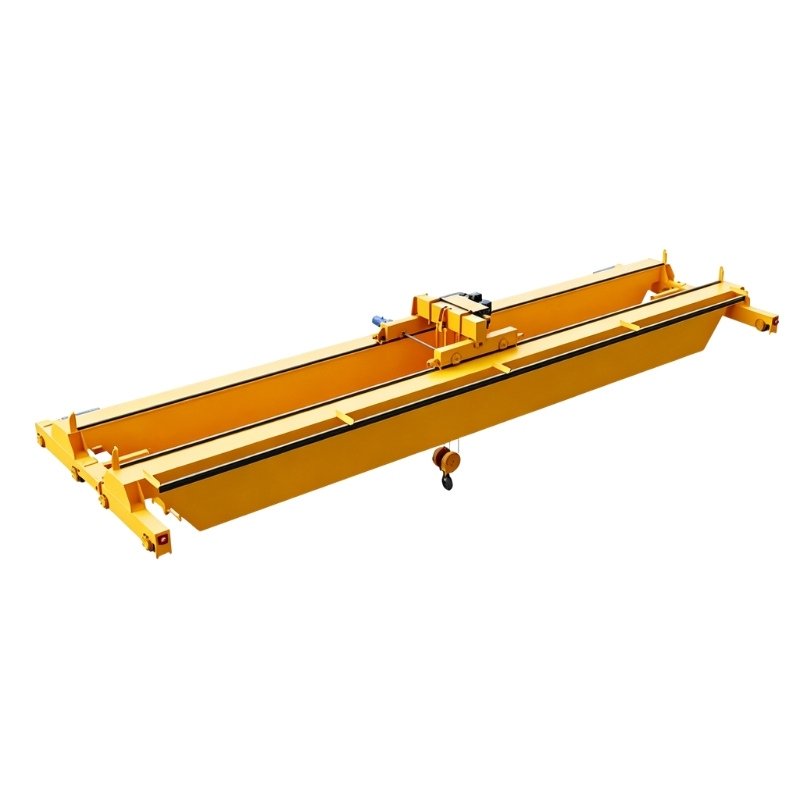

It has a stronger load-bearing capacity and excellent anti-fatigue performance, so it is ideal for heavy-load handling in large workshops.
This crane produces low noise and occupies less space, which improves your work efficiency and saves operational costs.

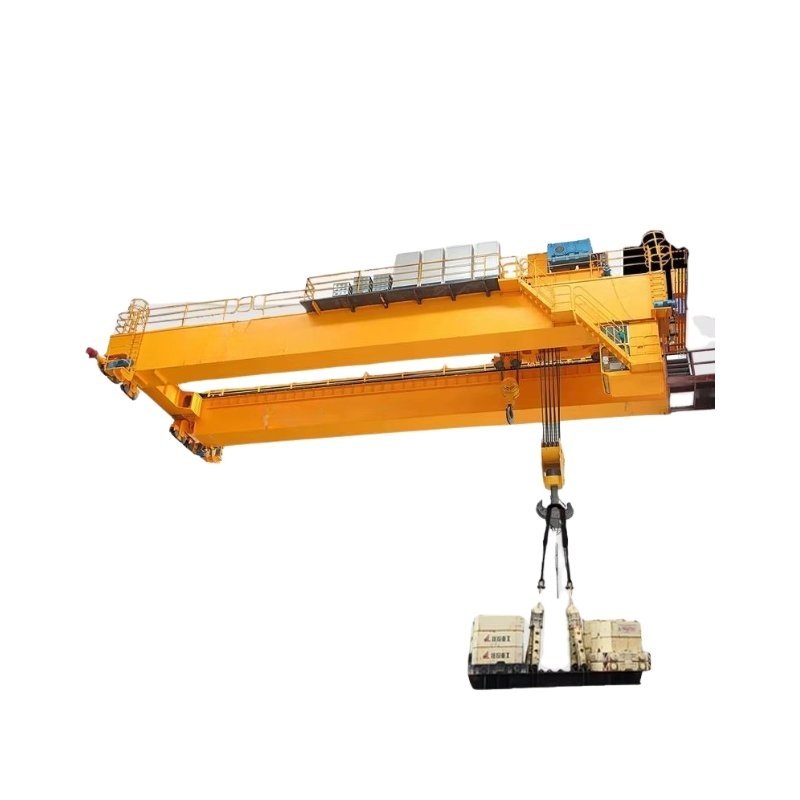

It adopts explosion-proof components, ensuring safe and reliable use. You can apply it in flammable and explosive industrial environments.
Features of the 50 Ton Bridge Crane
DINGYA’s 50-ton bridge crane is equipped with a high-strength steel main beam and stable lifting mechanism. You can apply it in continuous heavy-duty operation with deformation.
It adopts a high-sensitivity anti-sway device, effectively reducing the swing amplitude of materials during handling. This will enhance your product’s quality and keep it from scratch.Â
Made of high-strength steel, it delivers strong anti-fatigue and can handle harsh industrial environments. Therefore, you will enjoy a longer service life and reduce replacement costs.
Paired with full safety protection, such as anti-collision device and emergency stop button. It will alarm you and cut off the power, protecting your equipment.
The real-time weight feedback will be sent to your operators. If the load exceeds the rated capacity, the system will restrict further lifting. This ensures adherence to safety regulations.
The trolley wheelsets are crafted from hardened steel, it runs along the bridge rails without jamming. You benefit from lower energy consumption, creating an efficient working environment.
Our operation interface is intuitive and easy to learn, reducing fatigue. You can operate the crane from a safe distance, away from the immediate lifting zone.Â
The modular structure is easy to disassemble and maintain. This design reduces your system downtime and makes the 50-ton bridge crane back in operation as fast as possible.

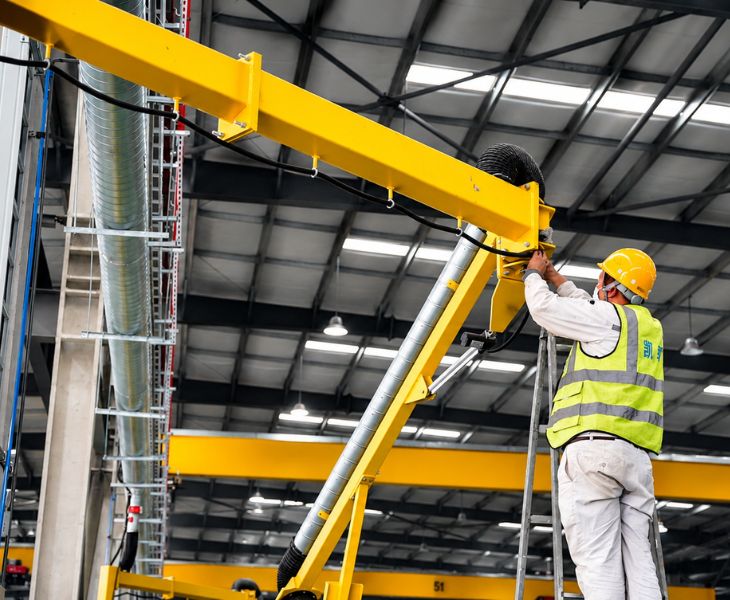

Handle Your High-Intensity Production
DINGYA’s 50-ton bridge crane can easily cope with your lifting needs of various heavy materials such as steel plates, coils, large mechanical parts and containers. The high-strength main beam has undergone stress relief treatment, so you can use it in heavy-load jobs for the long term without damage. What’s more, the crane prevents your operators from accidents, and also helps you significantly improve production capacity.

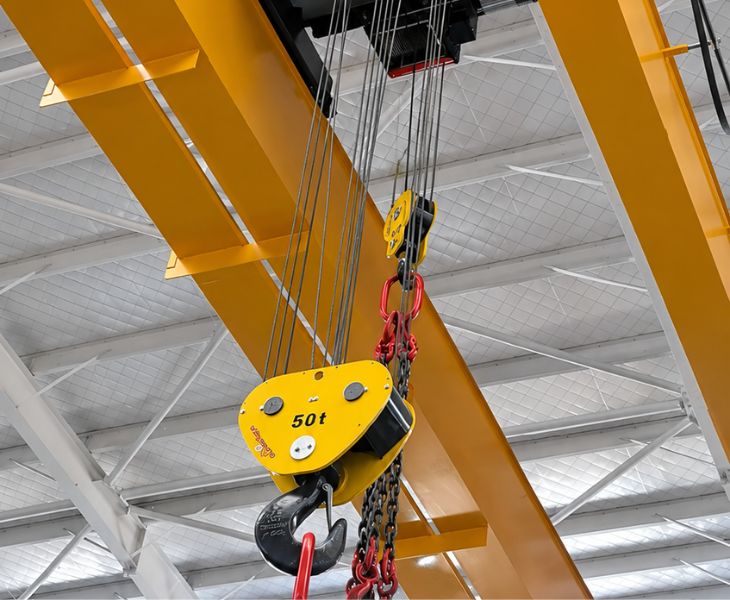

Reduce Your Production Loss
Through the advanced control system and anti-sway device, our bridge crane can precisely position heavy materials without deviation. Also, you don’t need to worry about collisions and damage between materials and equipment. It helps you effectively protect the safety of your on-site operators and machines, cutting production loss caused by accidents.
Typical Applications of 50 Ton Bridge Crane
Our bridge crane can lift and transfer large auto parts such as engine blocks, chassis, body frames and gearboxes. It helps you precisely position parts and greatly improves assembly efficiency. You can complete orders on time, thus earning more repeat customers.Â

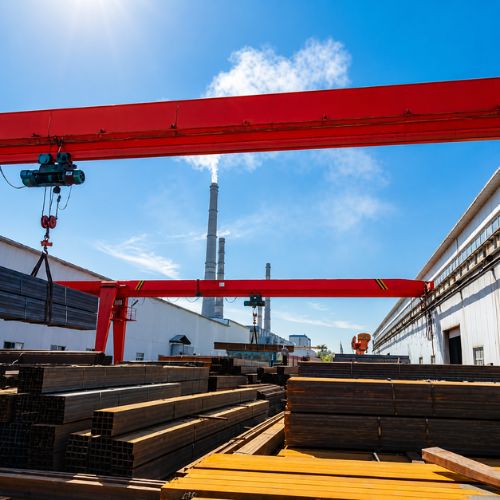

You’ll often see it in steel mills and processing plants. The 50-ton bridge crane is mainly used for handling and stacking heavy materials such as hot-rolled or cold-rolled steel coils, steel plates and bars. It withstands the high heat and corrosive environments, cutting your repair costs.

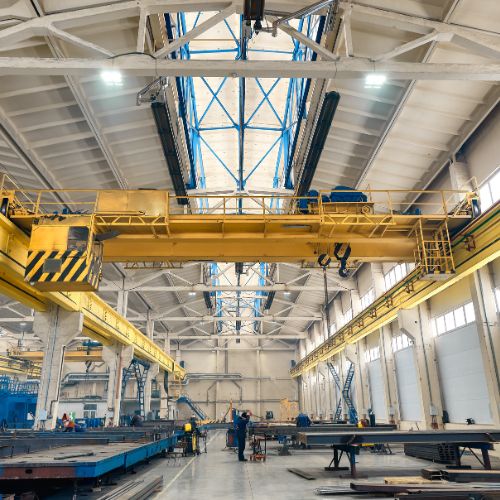

It can help you move large mechanical components, molds, and equipment. With a precise control system, our crane avoids damage to high-value mechanical parts and ensures the safety of material handling. So, it is a strong support for your orderly production progress.

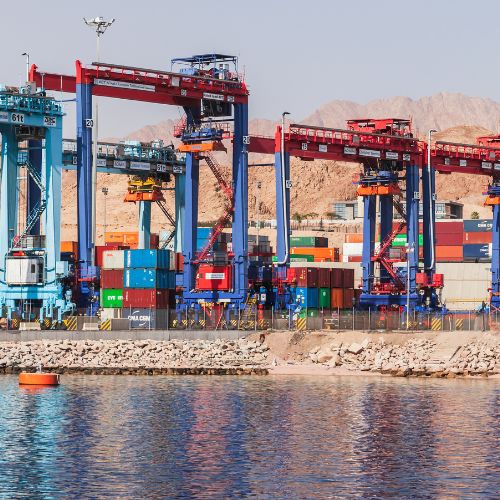

It is often used for stacking and lifting heavy goods such as large containers, mechanical equipment and large-scale hardware. You can freely operate it in the storage yard and improve the turnover. And you don’t need to pay for factory renovation.

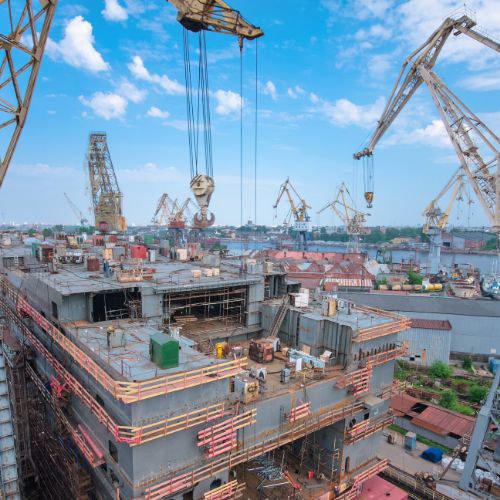

DINGYA’s 50-ton bridge crane can handle large ship parts such as hull sections, propellers, engines and shipborne equipment. With the powerful handling, it helps you improve the installation efficiency and enhance the assembly precision, saving your labor costs.

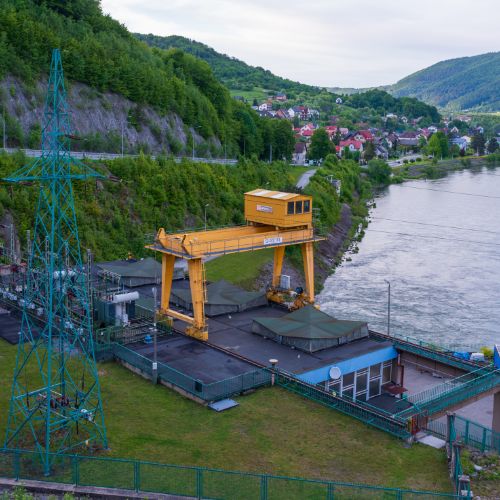

You can use it to lift and install heavy power equipment such as generators, transformers, boiler components and power transmission towers. The high safety and stable operation of the crane can protect your power equipment, facilitating your workers to maintain and manage it.
- Specification
| Maximum Lifting Weight | 50t or Customizable | Maximum Lifting Height | 20m or Customizable |
| Span | 28m, or Customizable | Color | Customizable |
| OEM/ODM | Available | Certification | GS, RoHS, CE, ISO9001 |
Usually, the load limiter will automatically stop the lifting operation when the bridge crane is overloaded. At this time, you should stop loading immediately and then remove the excess material. After carefully inspecting the crane, you can restart the operation.
Yes, the 50 ton bridge crane is easy to install. We provide a professional on-site installation team with rich experience and a detailed installation guide. Our team can install and commission the machine quickly, ensuring that it is put into use in time and meets your production needs.
You can decide according to your workshop’s span and operation frequency. If your workshop span is less than 20m with light load, the single girder crane is suitable. But for the large span and high-frequency heavy-load operation, the double girder crane is a better choice.
Of course. DINGYA uses a compact hoist and shortens the main beam height to greatly reduce the occupied space. It perfectly fits workshops with insufficient vertical space while keeping full rated load capacity and stable operation. We can also customize dimensions according to your actual site height to achieve safe and smooth use.
Its price varies greatly. Standard 50-ton bridge cranes have a moderate cost. It is mainly affected by crane span, lifting height, working level and extra functions like frequency conversion and explosion-proof design. Custom types cost more. We offer cost-effective solutions based on your actual working conditions.
50 Ton Bridge Crane Maintenance Guide
Main Beam
Check the main beam surface regularly. If you find rust, use sandpaper to thoroughly remove it, then wipe the surface and apply anti-corrosion paint in time. Also, inspect the welding joints monthly to see if there are cracks or loose welding.Â
Don’t forget to conduct stress detection. It ensures that the rigidity and deflection of the main beam meet the relevant standards and avoid deformation caused by long-term heavy loads.
Lifting Mechanism
You should check the wire rope every 3 days. If the number of broken wires exceeds the standard or the wear is serious, replace them immediately to avoid accidents. Lubricate the lifting motor and reducer once a month, which can make your components operate smoothly.
Meanwhile, see the hook and pulley weekly to guarantee they are in good condition without wear or binding.Â
Traveling Mechanism
You need to check the running wheel and the tightness of the wheel bolts. When the wheel is deviating, adjust the position. Moreover, once you hear abnormal noise during operation, try to add some lubricating oil.
Electrical Control System
For the electrical cabinet, you should clean it regularly with a dry cloth to avoid a short circuit. At the same time, check whether the electrical components are overheated.
Also, inspect the remote. If the remote control signal is weak, replace the battery. For a stuck button, you need to clean it to ensure normal operation.
Safety Protection Device
- Every week, you can press the emergency stop button to test if it can cut off the power immediately.
- Check the anti-sway device and adjust the sensitivity monthly.
- For the load limiter, calibrate its accuracy through professional equipment, which will protect your heavy-load operation safety.
